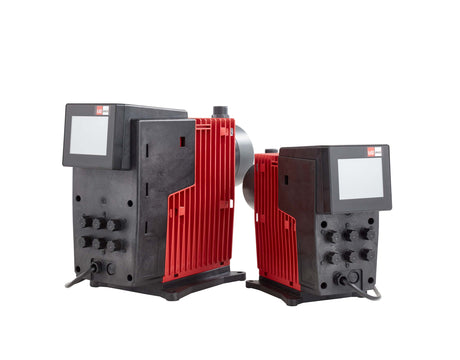

Memdos Smart Dose Pumps

Memdos Smart - LB, LD, LK & LP


With it's powerful variable-speed stepper motor and a turn-down ratio of up to 1:3000 the MEMDOS SMART range of dosing pumps are well suited to heavy demand industrial applications.

The stepper-motor with its wear-free tooth belt drive, ensures a particularly homogeneous and controllable dosing process.

Available in four versions LB, LD, LK and LP, the MEMDOS SMART provides a range of features, some are model dependant.

  • Dose Rate 2.4 l/h to 30.7 l/hr  model dependant
  • Back Pressure 3 Bar to 20 Bar model dependant
  • PVC, PP, PVDF and Stainless Steel dosing heads
  • Microprocessor controlled drive
  • Integrated dosing head venting facility (only MEMDOS SMART LP 2, LP 5 and   LP 10 with dosing head made of plastic)
  • Suitable for wall and floor mounting
  • Stroke frequency can be precisely adjusted via the keyboard
  • Graphic display with multi-language menu
  • Analogue input and pulse input (increase and reduction)
  • Level input with early warning and main alarm
  • Release input for external start/stop
  • Supply amount displayed in various units
  • Maximum delivery rate can be limited
  • Diaphragm replacement programme
  • 2 Slow Motion modes for dosing viscous media
  • Stroke feedback output
  • Alarm relay output
  • Batch dosing with interval and timer functions
  • Dosing control input
  • Diaphragm rupture input for leak monitoring
  • Ethernet interface (optional)
  • CSA and UL certified

          Accessory sets consisting of delivery hose, injection nozzle and suction line are available to ensure the reliable outcomes and quick installation.
