Lutz-Jesco  |  SKU: 10104087

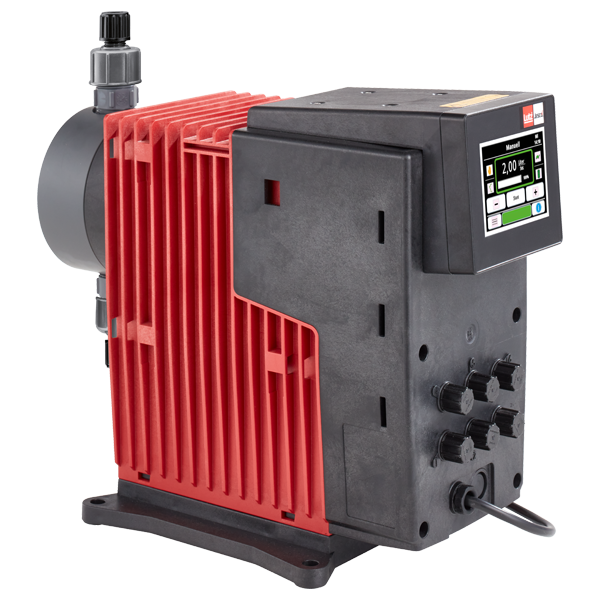

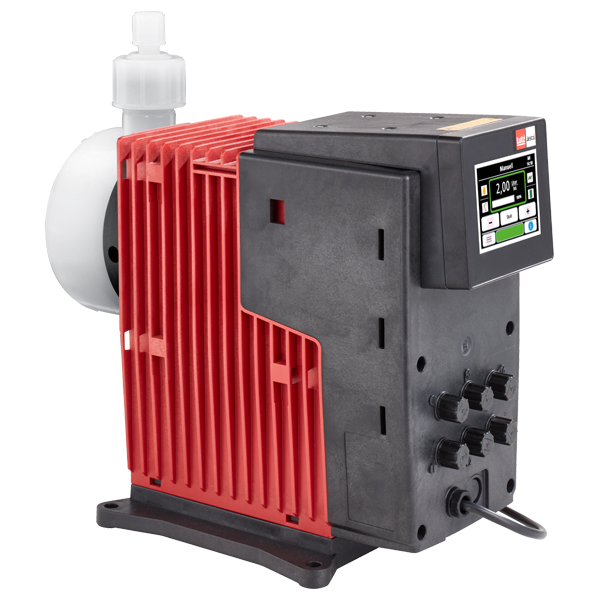

MEMDOS SMART LDX

$2,829.36 NZD
Shipping calculated at checkout.
Max. Flow/Pressure:
Materials:

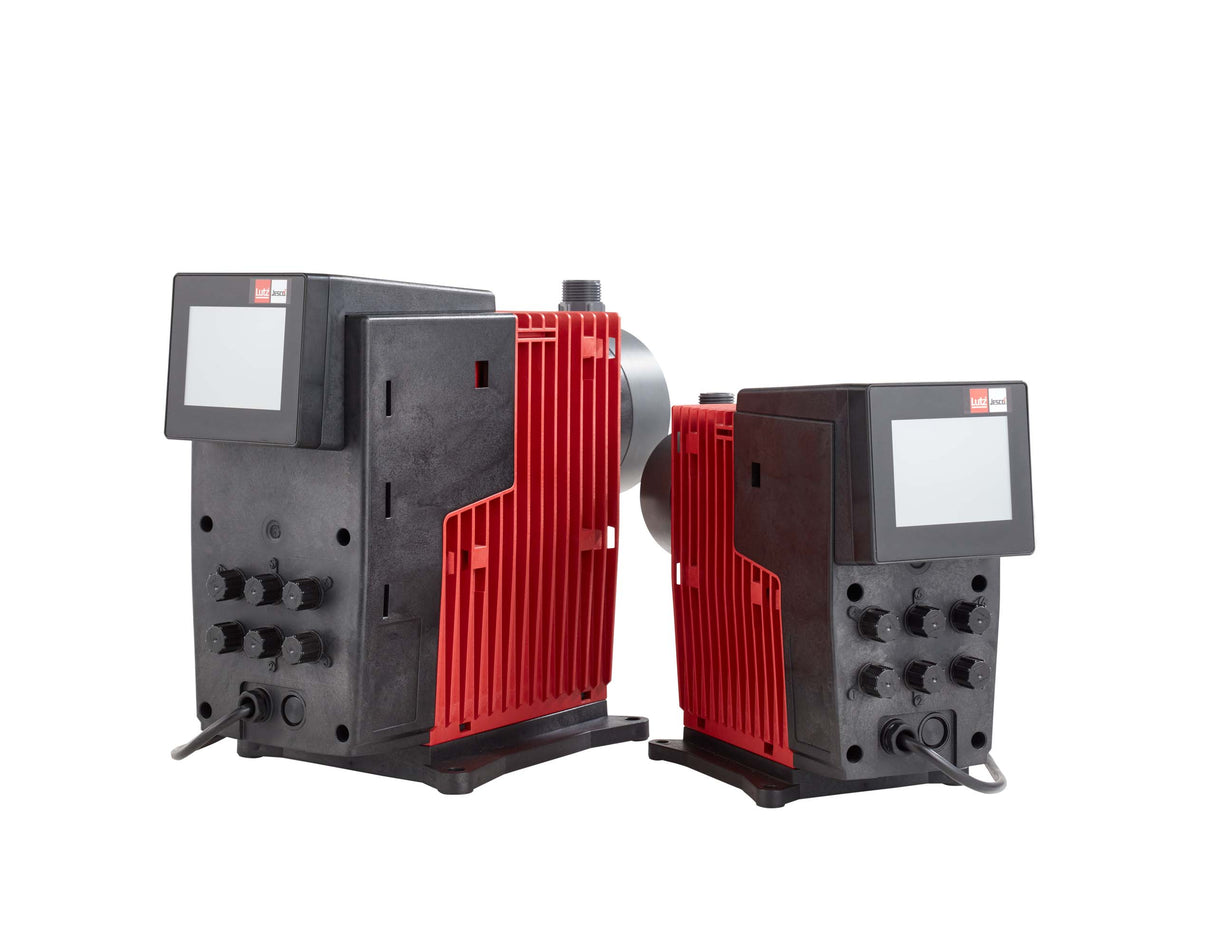

The MEMDOS SMART LDX utilizes advanced stepper motor technology to accurately dose even the smallest quantities. This new generation of pumps offers versatile solutions for complex dosing tasks, with two size footprints and eight performance ranges to choose from.

Featuring a 3.5-inch touchscreen display, operation is simple and safe. Optionally available with a left or right hand orientated display, the LDX smart pumps provide maximum flexibility.

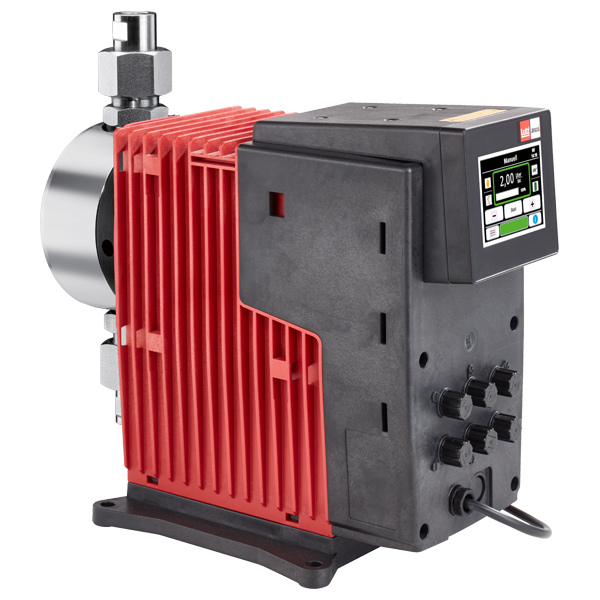

The LDX smart pump range are supplied with hose clamp connection kits which vary depending on the size of pump.  Options include 4/6mm, 6/9mm, 6/12mm, 13/20mm.  Some of the larger stainless steel dose head pumps are supplied with G 3/8mm.

Custom built options are available to meet specific installation requirements.  A full range of dose pump accessory kits are available to ensure each dose pump operates at maximum safety and efficiency.

Features & Advantages
  • Intuitive graphic display with multilingual menu support
  • Flow rate display in seven different units
  • Versatile mounting options for standard or wall installation
  • Password protection and customizable range settings
  • Clear, colour-coded alarm status indication on the display
  • Integrated calibration mode
  • Optional removable display for added convenience
  • Optional rotatable display positioning
  • Capability to operate multiple pumps via a single display (Available on request)
  • Manual control with a 0-100% range
  • Pulse control in constant or dynamic modes
  • Enable input for external start/stop functionality
  • Level input with pre and main alarm capabilities
  • Pulse input for overspeed and underspeed monitoring
  • Pulse output providing stroke feedback

Downloads

Memdos Smart Data Sheet

Memdos Smart User Manual
