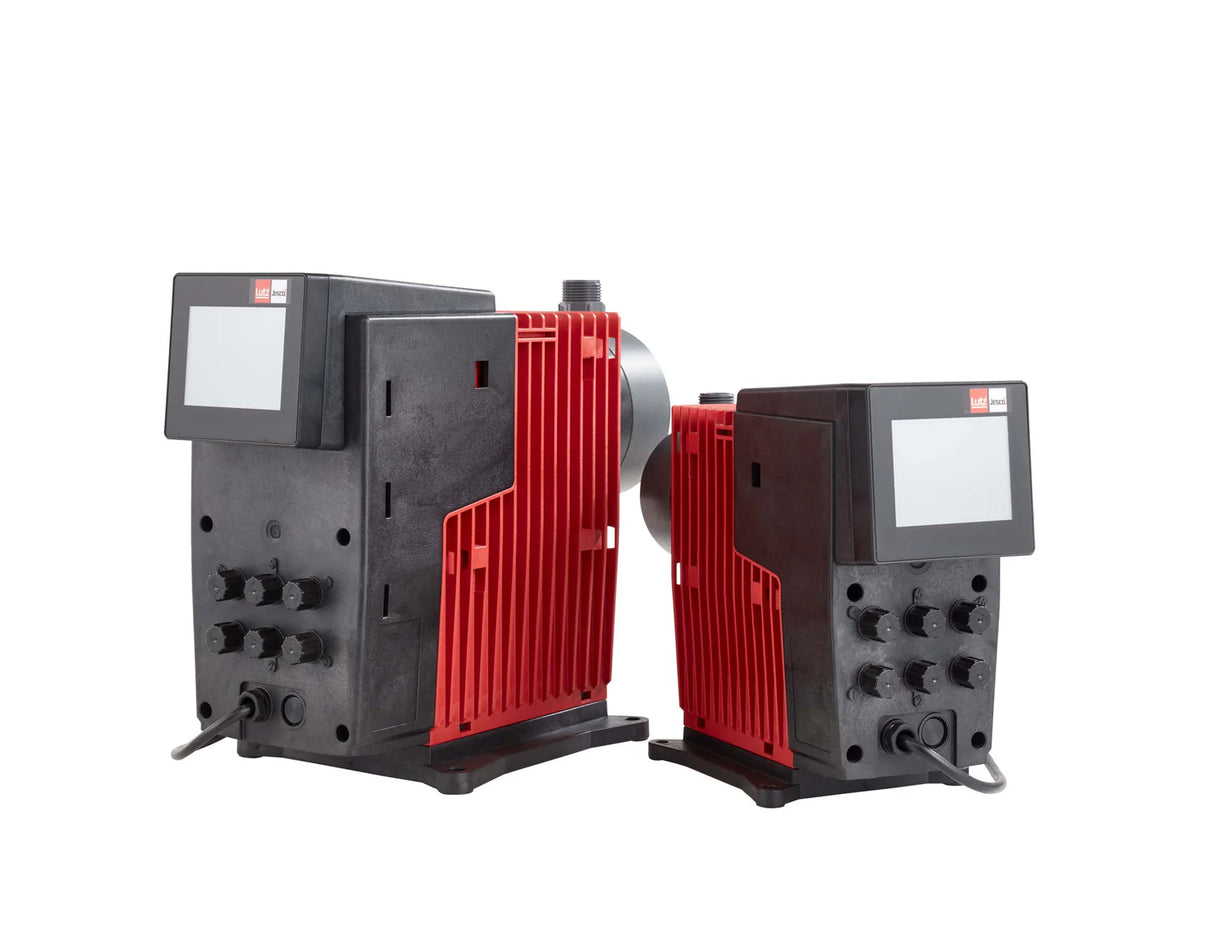

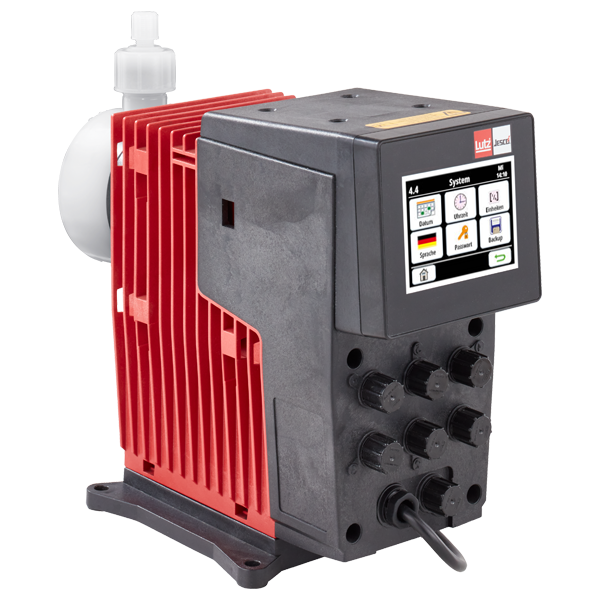

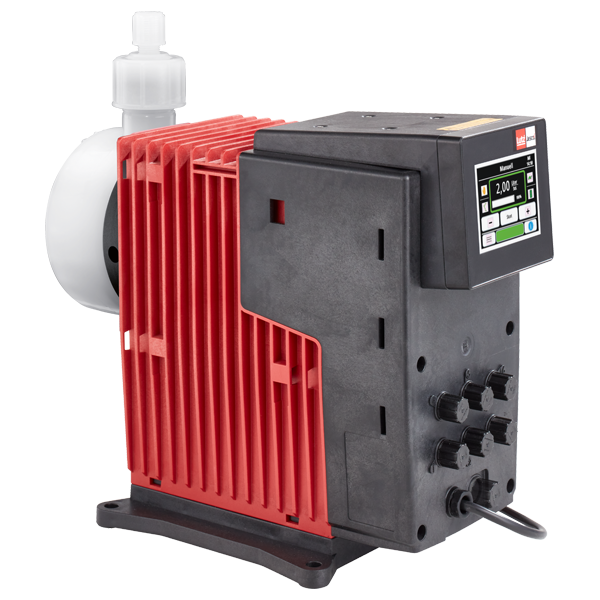

MEMDOS SMART LAX

Lutz-Jesco | SKU: 10105000

$3,618.30 NZD

Shipping calculated at checkout.

Max. Flow/Pressure:

LAX2 - 2.60 L/H @ 20 BAR LAX5 - 5.60 L/H @ 16 BAR LAX10 - 10.40 L/H @ 12 BAR LAX20 - 19.90 L/H @ 8 BAR LAX30 - 30.70 L/H @ 6 BAR LAX60 - 58.50 L/H @ 10 BAR LAX100 - 101.60 L/H @ 7 BAR LAX180 - 182.00 L/H @ 4 BAR

Materials:

PVC/FPM PP/FPM PVDF/FPM SS - 1.4571/FPM

Product variants

MEMDOS SMART LAX: Precision Chemical Dosing

The MEMDOS SMART LAX pump utilizes cutting-edge stepper motor technology to deliver highly precise dosing, even for the smallest chemical quantities. This new generation of pumps provides a range of compelling solutions for challenging and intricate dosing applications. The LAX series comes in eight different performance ranges to suit various needs.

For easy and secure operation, these smart pumps feature a full-color 3.5-inch touchscreen display. Plus, for added flexibility, you can order the pumps with the display positioned on either the left or right side right from the factory.

Graphic display with multilingual menu
Display of the flow rate in 7 different units
Pump base for standard or wall mounting
Password protection and adjustable ranges
Alarm status shown in colour on the display
Calibration mode
Removable display (optional)
Display position rotated (optional)
Available on request: Multiple pumps can be operated via one display
Manual control, 0 - 100 %
Analogue control 0/4 - 20 mA, scalable
Enable input (external start / stop)
Level input with pre- and main alarm
Analogue input 0/4 - 20 mA
Analogue output 0/4 - 20 mA, scalable
