Lutz-Jesco  |  SKU: 10101084

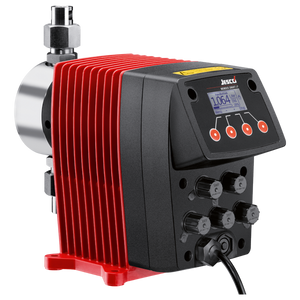

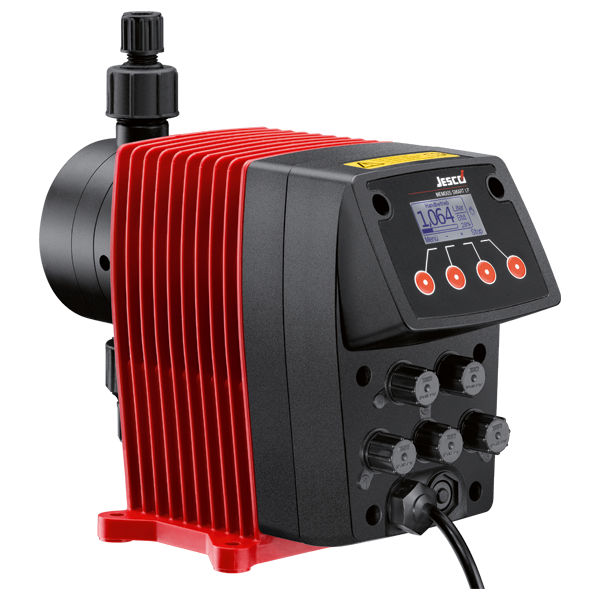

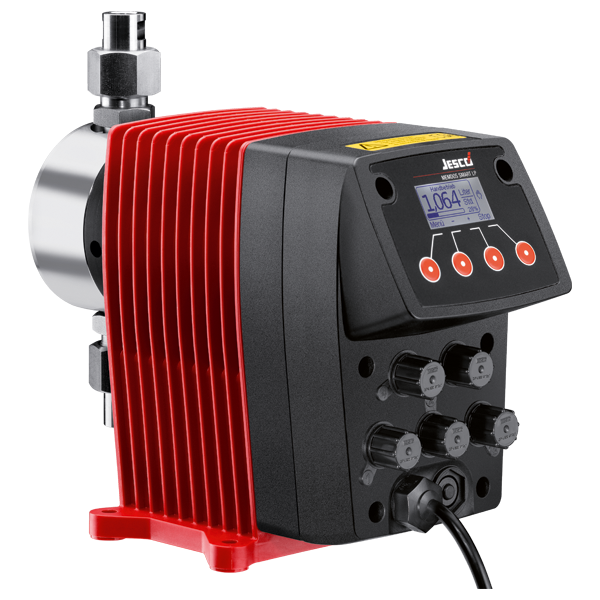

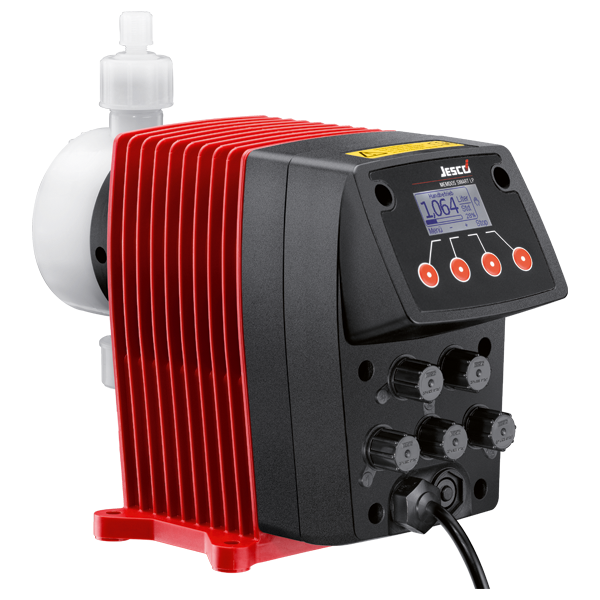

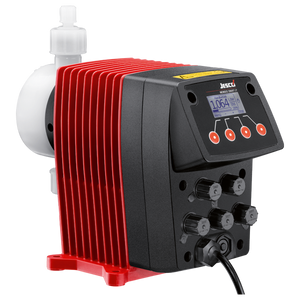

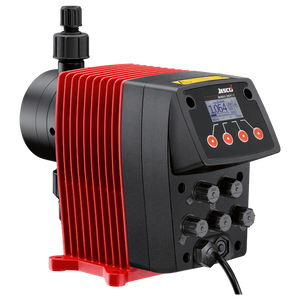

MEMDOS SMART LP Stepper Motor Dose Pump

$2,972.00 NZD
Shipping calculated at checkout.
Max. Flow/Pressure
Materials
Whether you're fine-tuning chemical dosing in a water treatment system, managing nutrient delivery in aquaculture, or controlling precise liquid applications in industrial processes, the MEMDOS SMART LP gives you the control you need. This compact stepper motor pump adapts to your workflow with six performance options, so you're not paying for capacity you don't use. Its digital controls let you adjust dosing on the fly, and if you're running a connected facility, the optional Ethernet MODBUS version integrates seamlessly into your existing automation setup. Reliable, flexible, and built for real-world applications where accuracy matters.

Features & Advantages
  • Capacity range 2.4 - 30.7 l/h, up to 20 bar
  • Power supply 100 - 250 V, 50/60 Hz, IP65, power consumption 25 W
  • Microprocessor-controlled drive
  • Integrated dosing head ventilation (only MEMDOS SMART LP 2, LP 5 and LP 10 with plastic dosing head)
  • Suitable for wall and floor mounting
  • Material versions PVC, PP, PVDF and stainless steel
  • Stroke frequency precisely adjustable with keypad
  • Graphic display with multilingual menu
  • Analogue input and pulse input (overshoot and undershoot)
  • Level input with pre-alarm and main alarm
  • Enable input for external start/stop
  • Display of flow rate in various units
  • Limitation of the maximum flow rate possible
  • Diaphragm change programme
  • 2 slow motion modes for dosing viscous media
  • Stroke feedback output
  • Alarm relay output
  • Batch dosing with interval and timer function
  • Dosing control input
  • Diaphragm rupture detection and signalling (optional)
  • Ethernet interface (optional)

Downloads

Download User Manual Memdos Smart LK/LP

Download Data Sheet
