Lutz-Jesco | SKU:
10211400

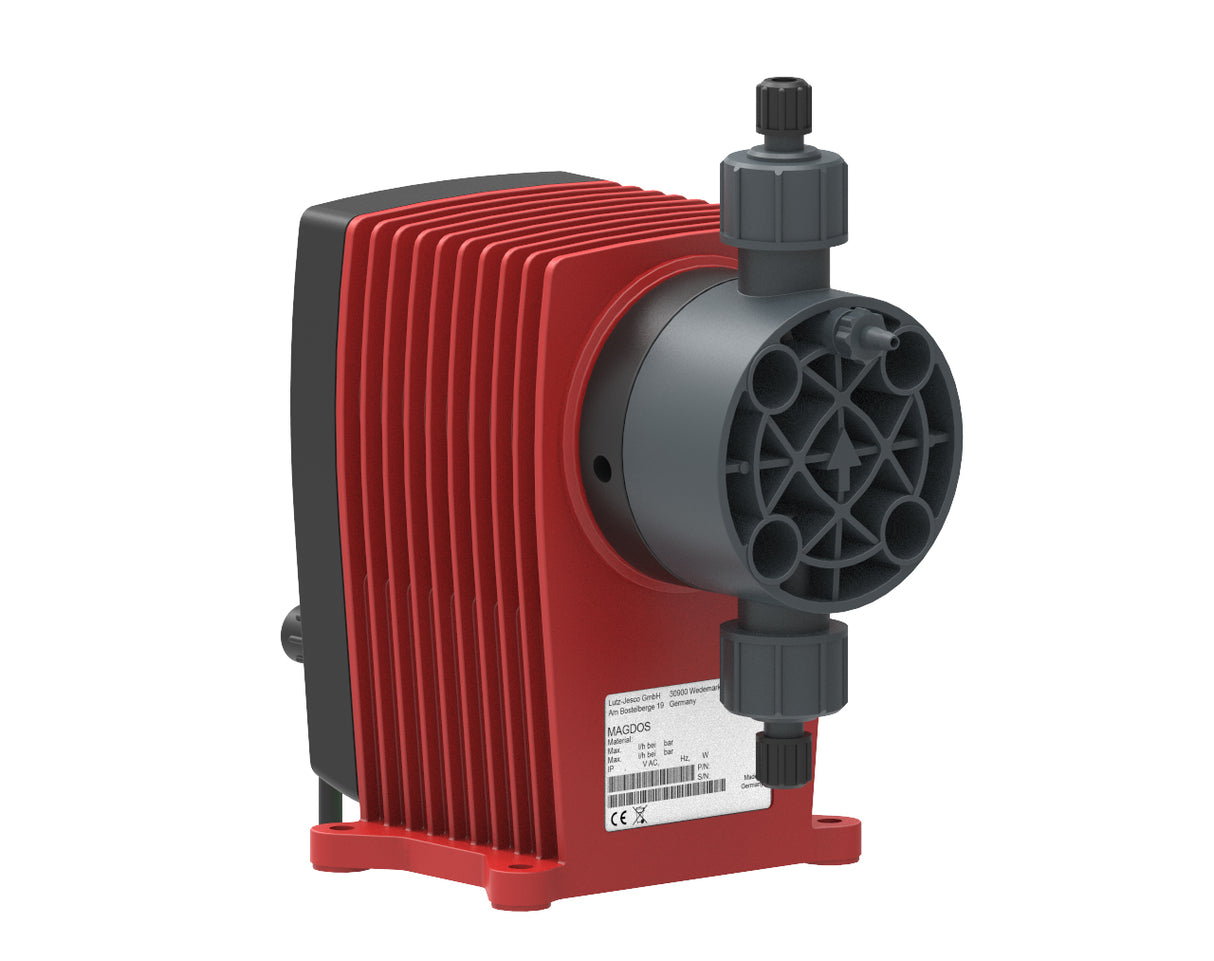

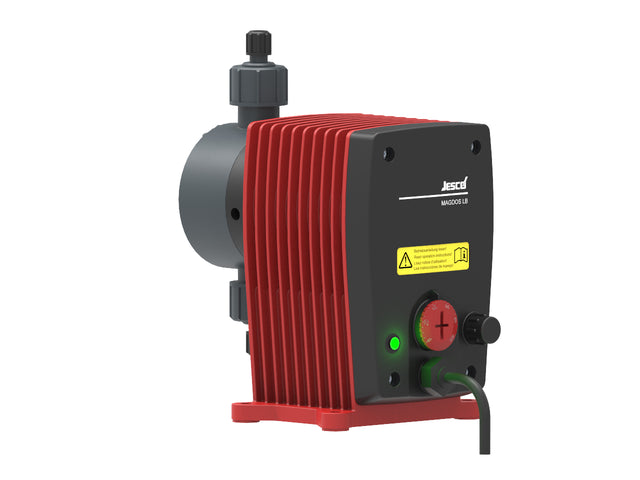

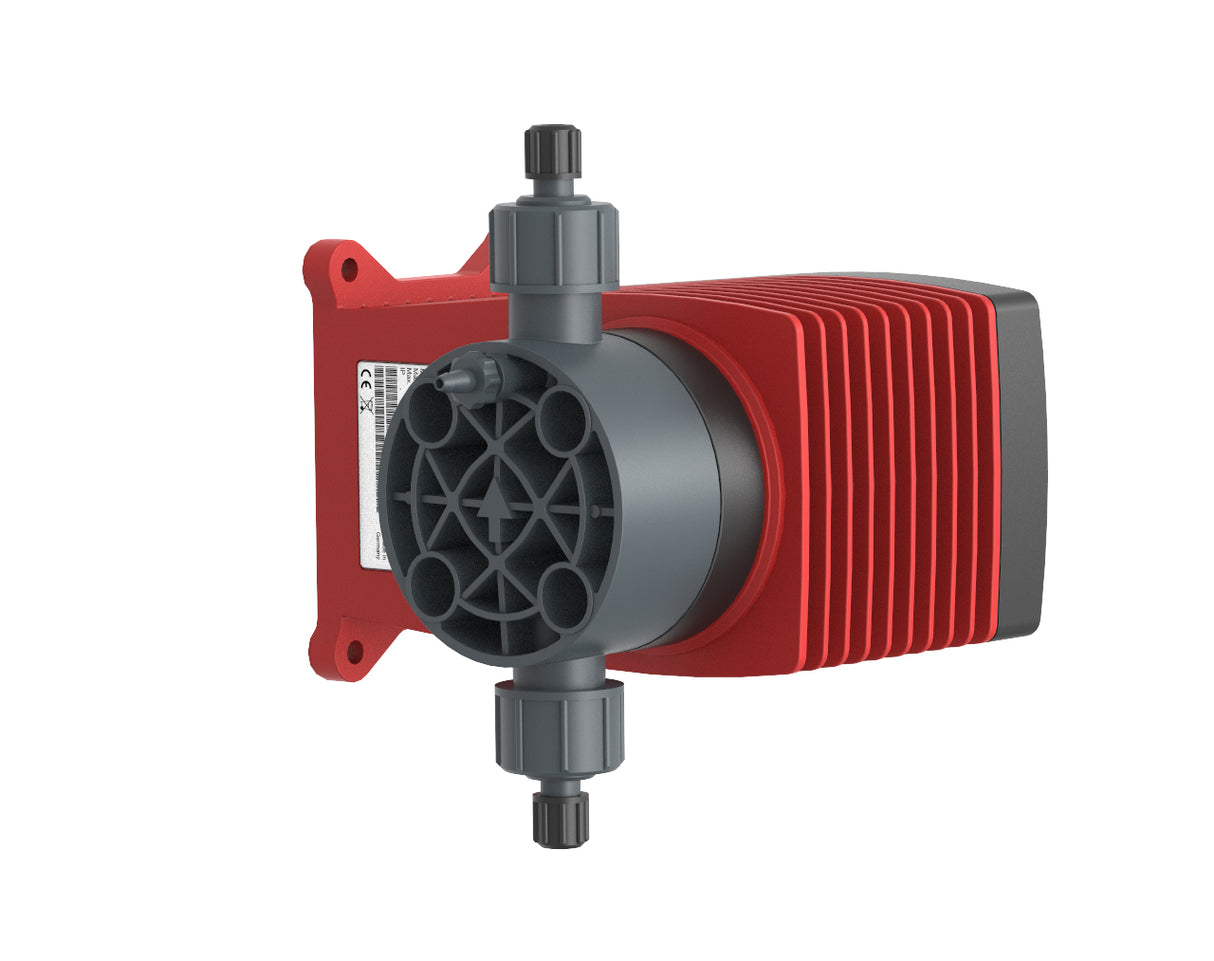

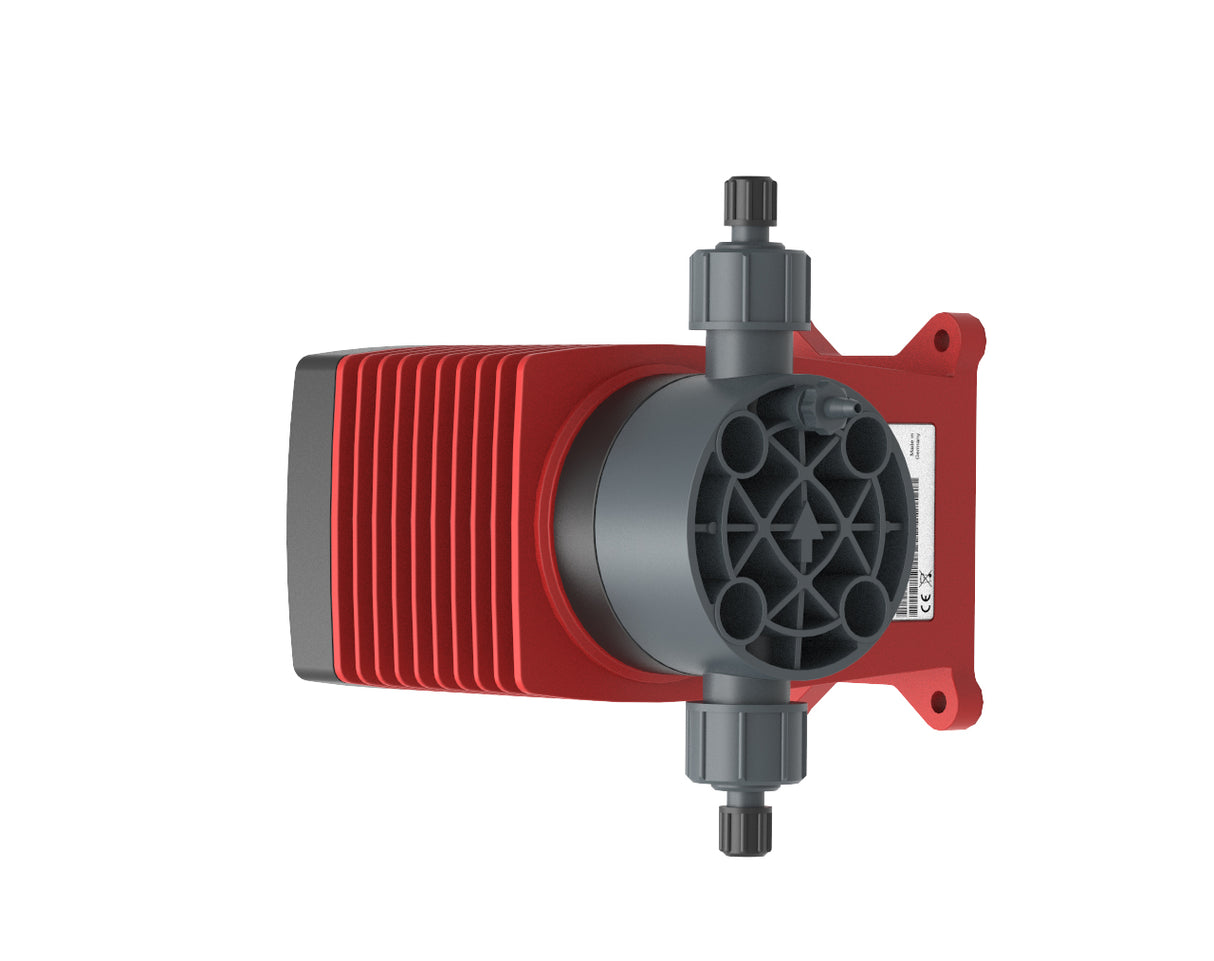

MAGDOS LB Solenoid Diaphragm Dose Pump
$1,074.54 NZD
Unit price
/
Unavailable
Shipping calculated at checkout.
MAGDOS LB Solenoid Diaphragm Dose Pump - PVC/FPM / LB05- 0.36 L/H @ 16 Bar is backordered and will ship as soon as it is back in stock.
The MAGDOS LB solenoid-driven diaphragm dosing pump is a cost-effective alternative for simple, continuous dosing tasks. It is particularly suitable for water treatment and the process industry. The MAGDOS LB is available in seven performance ranges. Double ball valves ensure precise dosing. The dosing capacity can be adjusted continuously from 0 - 100 % via the stroke frequency of the dosing pump. The MAGDOS LB is a compact solution, reduced to the most important elements for reliable dosing.
| Control unit:: | 100 - 240 V AC, 50/60 Hz |
|---|---|
| Delivery rate:: | 0,76 l/h bei 16 bar - 1,1 l/h bei 8 bar |
| Dosing head arrangement:: | Floor mounting |
| Electrical connection:: | 1,8 m NZ/AU Plug |
| Function-4: | Level input with main alarm |
| Function-5: | External Start/Stop |
| Function-6: | Status LED |
| Material dosing head and valves: | PVDF / PVC / PP |
| Material pressure connection: | PVDF / PVC / PP |
| Power adjustment: | Stroke Frequency adjustable 0-250 strokes/min |
| Pressure connection: | Hose clamp connect set 4/6, 6/9 and 6/12 |
| Pressure valve: | DN3 Double ball PTFE/PVDF/FPM [ball/seat/seal] |
| Product: | MAGDOS |
| Suction connection: | Hose clamp connection set 4/6, 6/9 and 6/12 |
| Suction connection material: | PVDF / PVC / PP |
| Suction valve: | DN3 Double ball PTFE/PVDF/FPM [ball/seat/seal] |
| Type: | LB |
