MAGDOS LD

$0.00 NZD

Shipping calculated at checkout.

Max. Flow/Pressure

LD-05 0.36 L/H @ 16 Bar LD-1 0.76 L/H @ 16 Bar LD-2 1.9 L/H @ 16 Bar LD-4 3.4L/H @ 16 Bar LD-6 6.2 L/H @ 8 Bar LD-10 9 L/H @ 6 Bar LD-15 13 L/H @ 3 Bar

Materials

PVC/FPM PP/FPM PVDF/FPM 1.4571/FPM

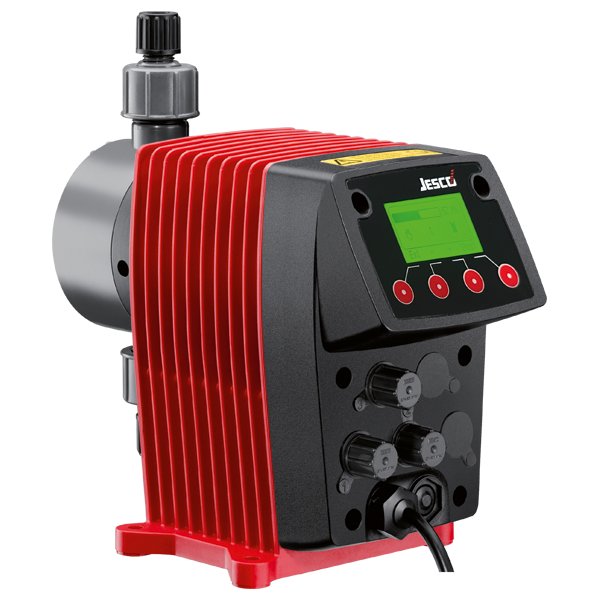

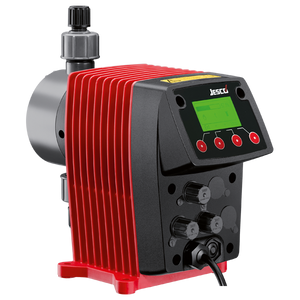

MAGDOS LD – User-friendly and compact design

The MAGDOS LD is essential for reliable and accurate liquid dosing in process applications, with seven performance options to suit your requirements. Dual ball valves guarantee precise dosing control. Stroke frequency can be adjusted manually or via external control inputs to match your desired dosing output.

This compact dosing pump integrates seamlessly into any dosing system with minimal space requirements. Its small footprint allows flexible installation in three orientations – vertical, horizontal, or wall-mounted either left or right – without additional equipment or modifications needed.

Output range 0.36 - 13 l/h, up to 16 bar
Power supply 230 V ±10 %, 50/60 Hz, IP65 or 115 V ± 10 %, 50/60 Hz, IP65
Dosing head ventilation (plastic version)
Suitable for wall and floor mounting
Material versions PVC, PP, PVDF, stainless steel
Stroke frequency precisely adjustable with keypad
Graphic display
Pulse input (overshoot and undershoot)
Level input with pre-alarm and main alarm
Enable input for external start/stop
Calculation wizard for pulse operation available online
CSA and UL certified
