Lutz-Jesco  |  SKU: 10211400

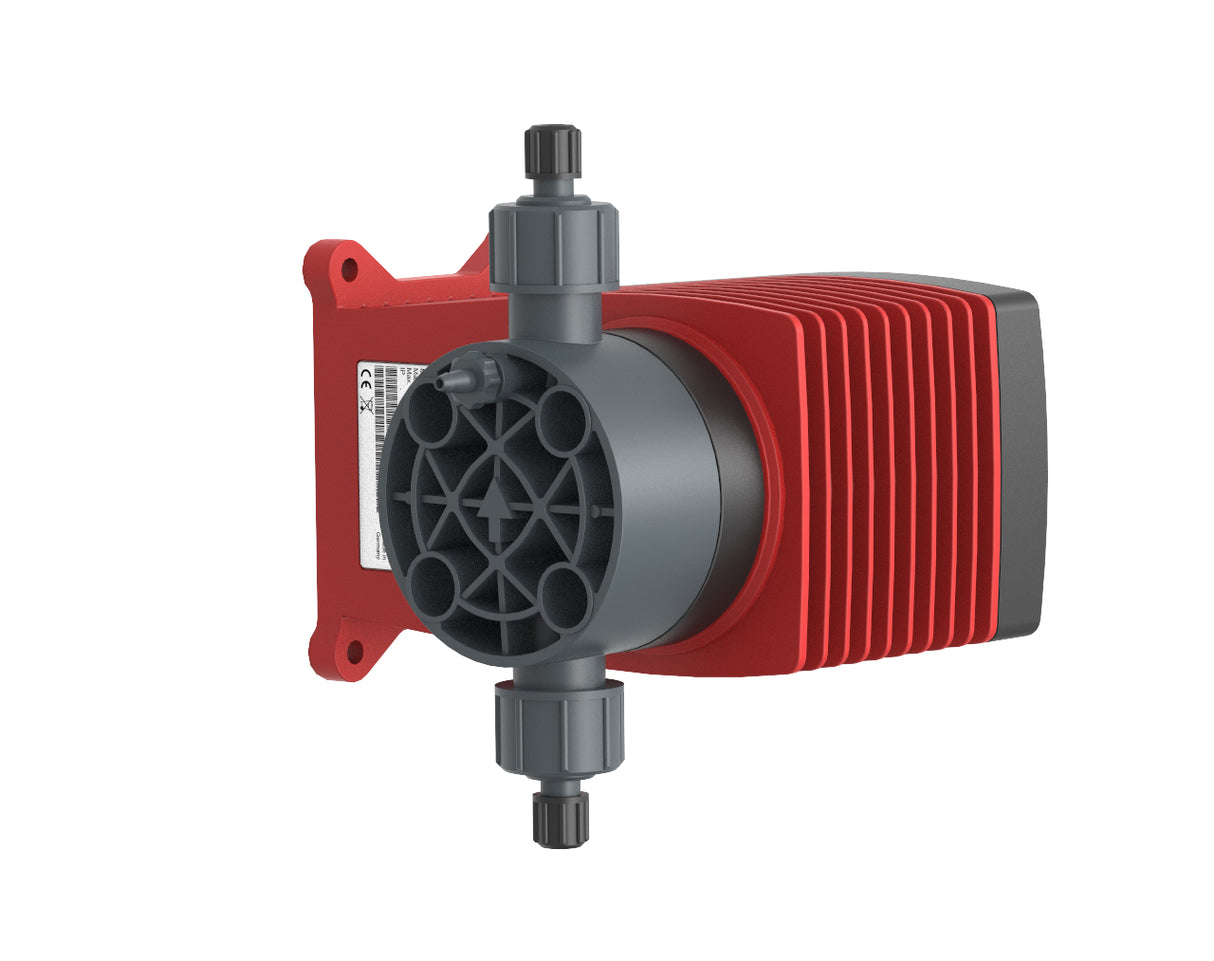

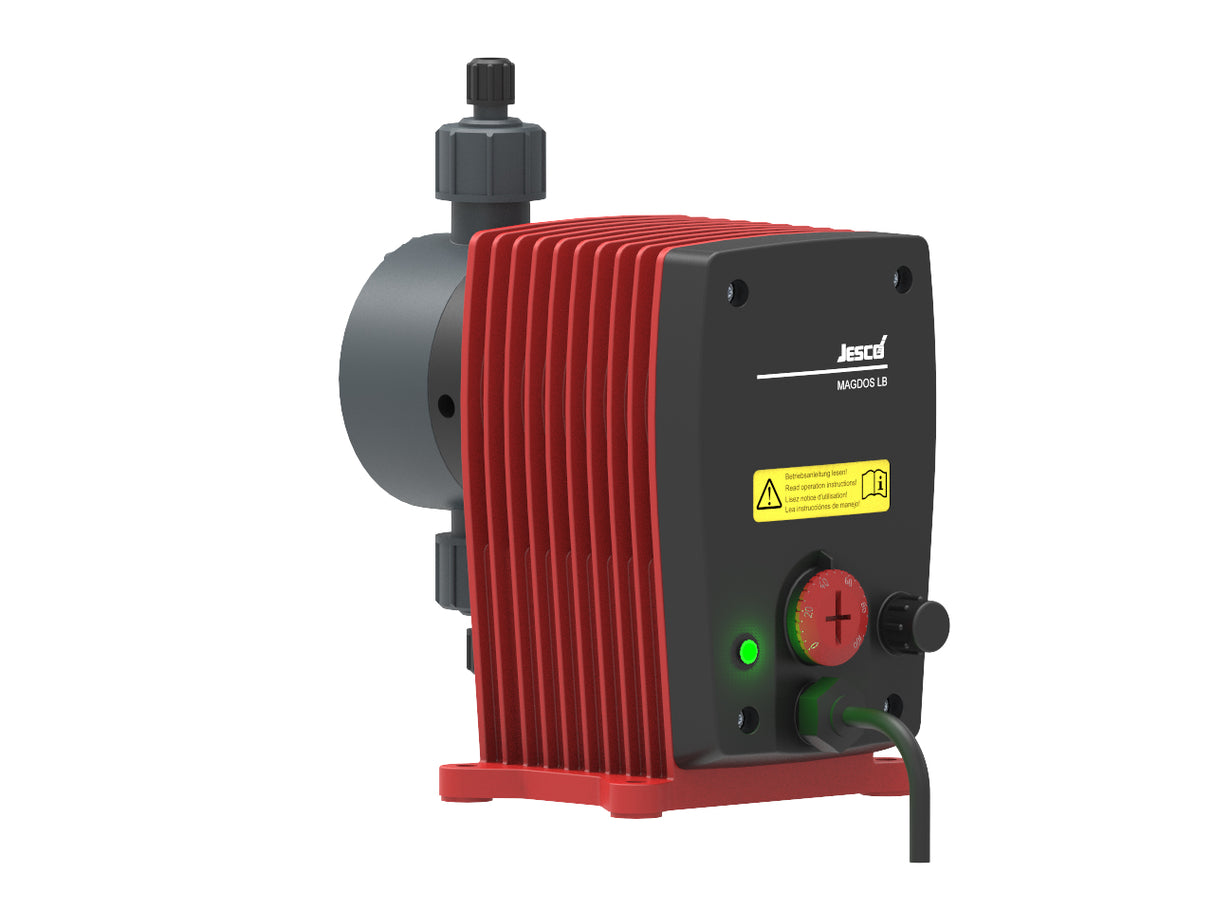

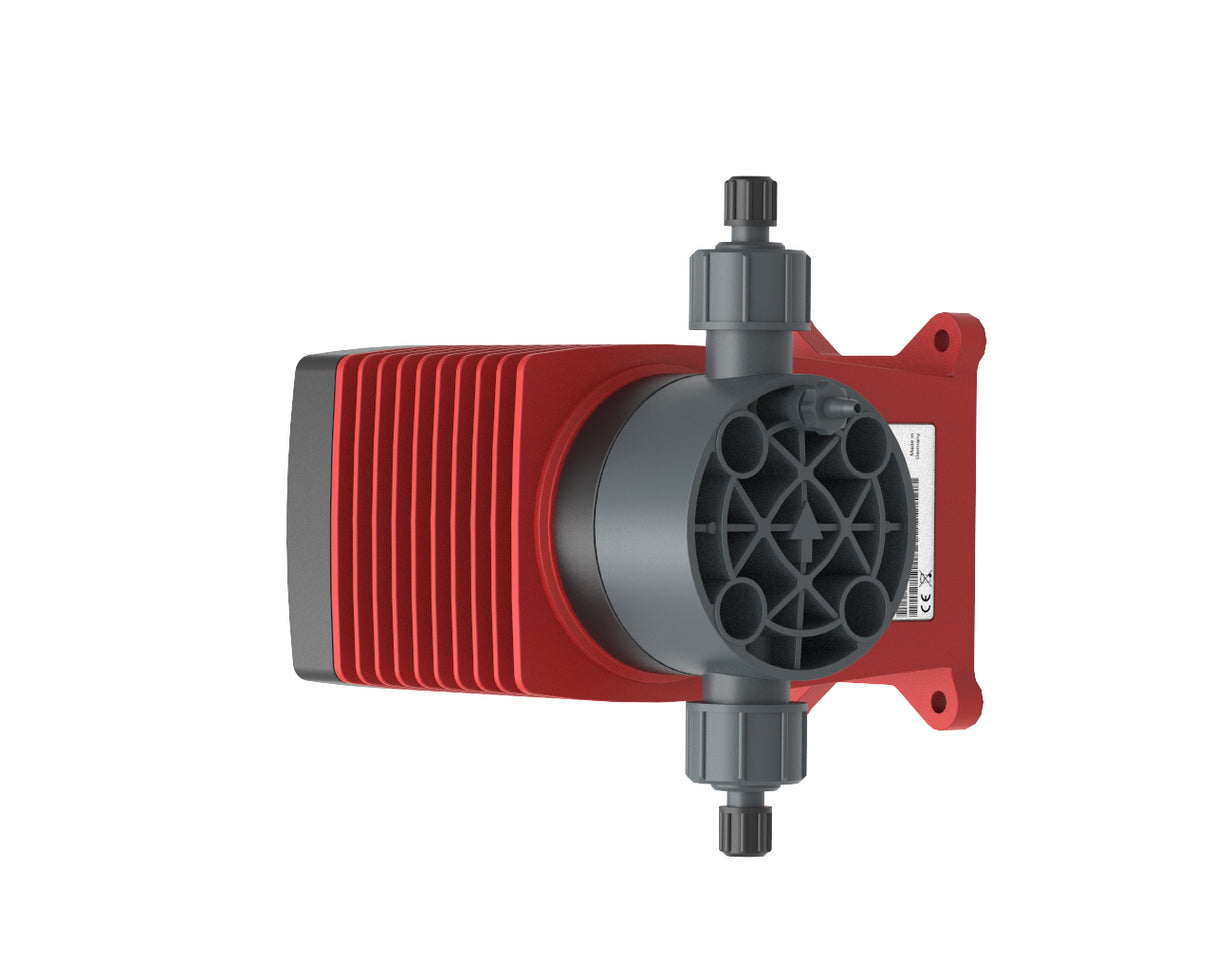

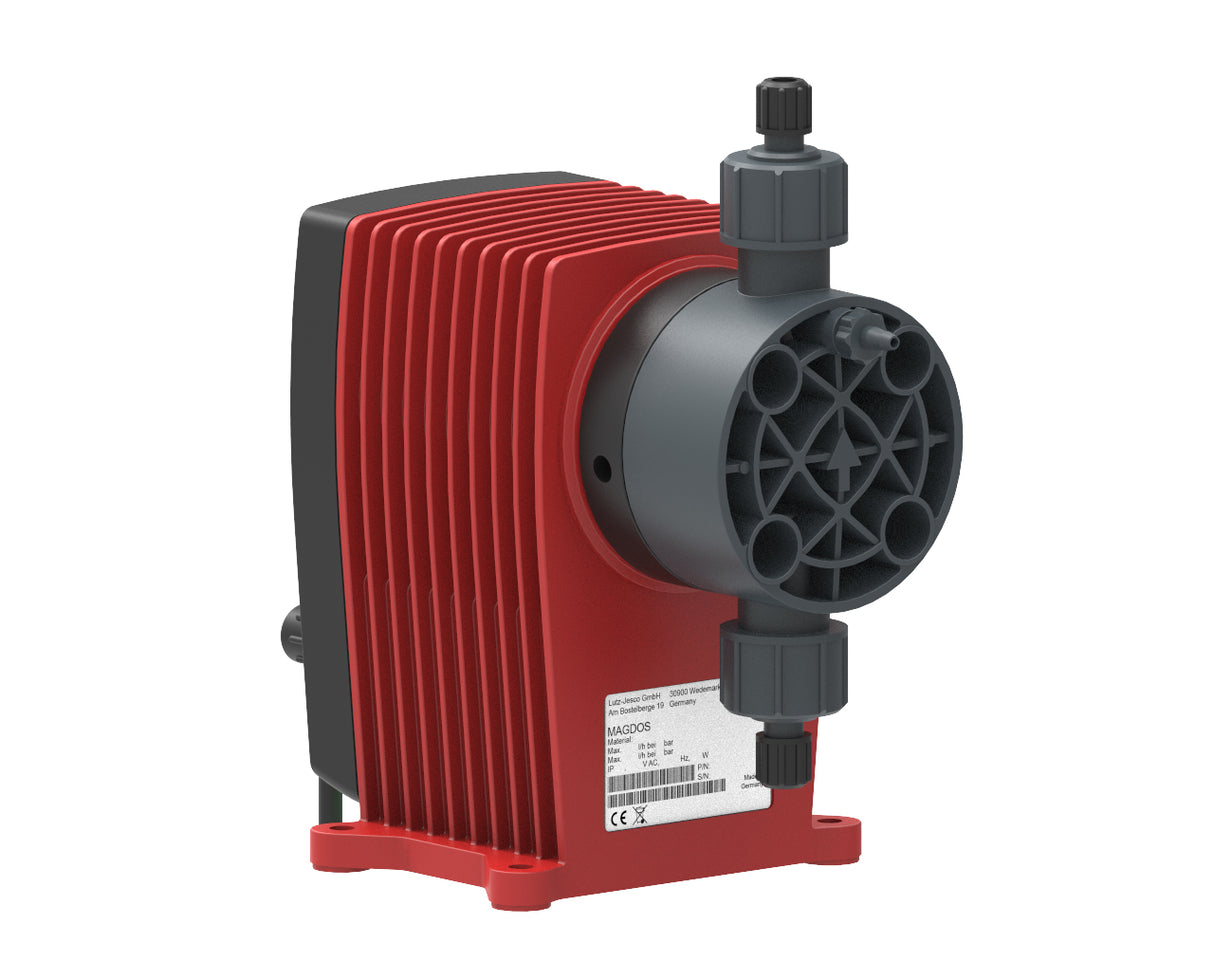

Magdos LB

$1,074.54 NZD
Shipping calculated at checkout.
Dose Pump Size (Delivery @ Max Backpressure)
Dose Head Material

The MAGDOS LB Solenoid Diaphragm Dosing Pumps are solenoid-diaphragm dosing that are a good-value alternative for simple and continuous dosing tasks. The pumps are especially suitable for the for water treatment and the process industry applications. Double-ball valves ensure an accurate dosing. There are seven sizes to choose from. The dosing capacity can be adjusted continuously from 0 – 100% through stroke frequency adjustment.

General Information

  • Dose range from 0.5 – 15 l/h, up to 16 bar back pressure
  • Long-range power supply unit 110 – 240 V, 50/60 Hz, IP65
  • Dosing head ventilation
  • Suitable for wall and floor mounting
  • Material finishes PVC, PP, PVDF
  • Seals = FPM, Double Ball = Ceramic, Seats = PVDF
  • Infinitely variable dosing rate from 0 – 100 %
  • CSA and UL certified
  • Supplied with connection kit to suit sizes 4/6, 6/9 and 6/12mm tubes

Features

Downloads

Lutz-Jesco

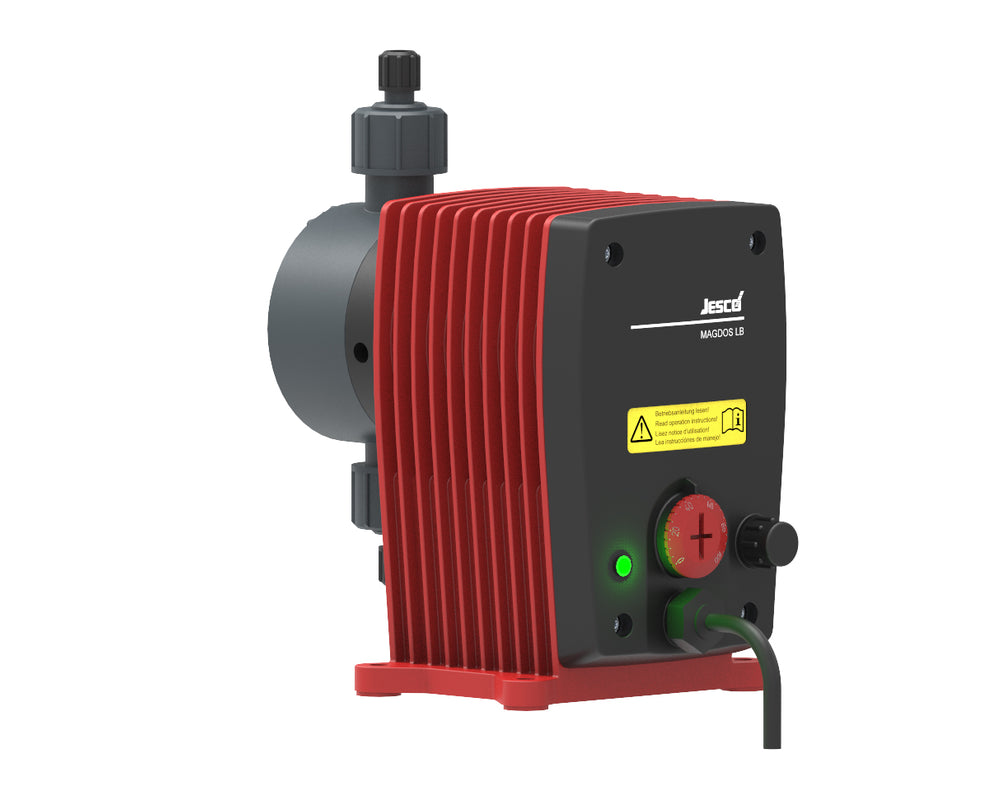

Magdos LB

From $1,074.54 NZD

The MAGDOS LB Solenoid Diaphragm Dosing Pumps are solenoid-diaphragm dosing that are a good-value alternative for simple and continuous dosing tasks. The pumps are especially suitable for the for water treatment and the process industry applications. Double-ball valves ensure an accurate dosing. There are seven sizes to choose from. The dosing capacity can be adjusted continuously from 0 – 100% through stroke frequency adjustment.

General Information

  • Dose range from 0.5 – 15 l/h, up to 16 bar back pressure
  • Long-range power supply unit 110 – 240 V, 50/60 Hz, IP65
  • Dosing head ventilation
  • Suitable for wall and floor mounting
  • Material finishes PVC, PP, PVDF
  • Seals = FPM, Double Ball = Ceramic, Seats = PVDF
  • Infinitely variable dosing rate from 0 – 100 %
  • CSA and UL certified
  • Supplied with connection kit to suit sizes 4/6, 6/9 and 6/12mm tubes

Dose Pump Size (Delivery @ Max Backpressure)

  • LB 05 - 0.36 L/H - 16 Bar
  • LB 1 - 0.76 L/H - 16 Bar
  • LB 2 - 1.9 L/H - 16 Bar
  • LB 4 - 3.4 L/H - 16 Bar
  • LB 6 - 6.2 L/H - 8 Bar
  • LB 10 - 9 L/H - 6 Bar
  • LB 15 - 13 L/H - 3 Bar

Dose Head Material

  • PVC/FPM
  • PP/FPM
  • PVDF/FPM
  • SS 1.4571/FPM
