MAGDOS LA

$0.00 NZD

Shipping calculated at checkout.

Max. Flow/Pressure

LA-05 0.36 L/H @ 16 Bar LA-1 0.76 L/H @ 16 Bar LA-2 1.9 L/H @ 16 Bar LA-4 3.4L/H @ 16 Bar LA-6 6.2 L/H @ 8 Bar LA-10 9 L/H @ 6 Bar LA-15 13 L/H @ 3 Bar

Materials

PVC/FPM PP/FPM PVDF/FPM SS 1.4571/FPM

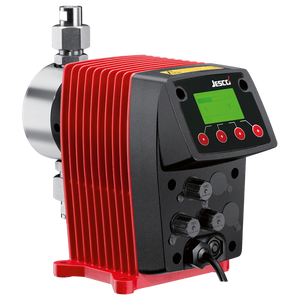

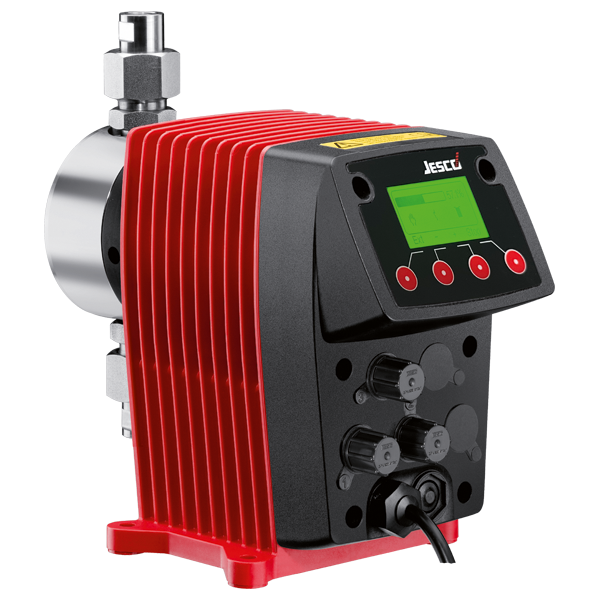

MAGDOS LA

The MAGDOS LA delivers reliable and precise liquid dosing across seven performance ranges, making it essential for consistent process sequences. Dual ball valves guarantee accurate dosing, whilst stroke frequency can be adjusted manually or via analogue signal (0/4 - 20 mA) to suit your requirements.

This compact dosing pump integrates seamlessly into any system with minimal space requirements. Its small footprint allows flexible installation in three orientations—upright, horizontal, or wall-mounted left or right—without additional equipment or modifications.

Output range 0.36 - 13 l/h, up to 16 bar
Power supply 230 V ±10 %, 50/60 Hz, IP65 or 115 V ± 10 %, 50/60 Hz, IP65
Dosing head ventilation (plastic version)
Suitable for wall and floor mounting
Material versions PVC, PP, PVDF, stainless steel
Stroke frequency precisely adjustable with keypad
Graphic display
Analogue input 0/4 - 20 mA adjustable
Level input with pre-alarm and main alarm
Enable input for external start/stop
CSA and UL certified
